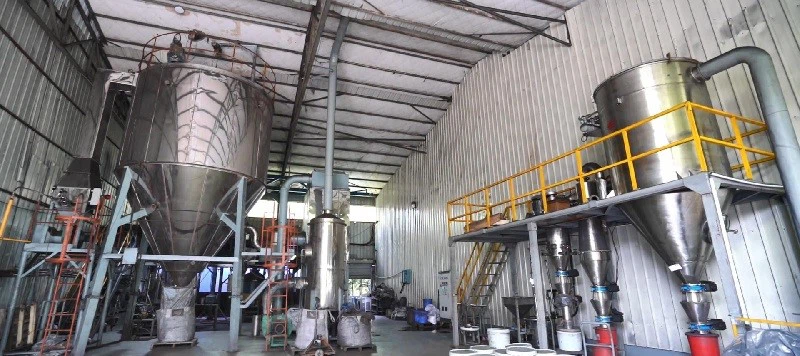

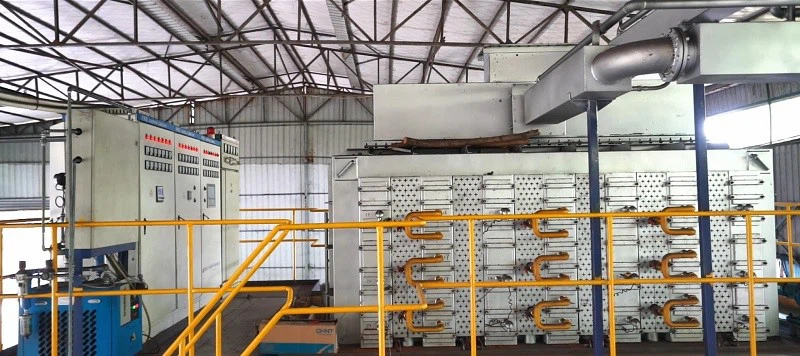

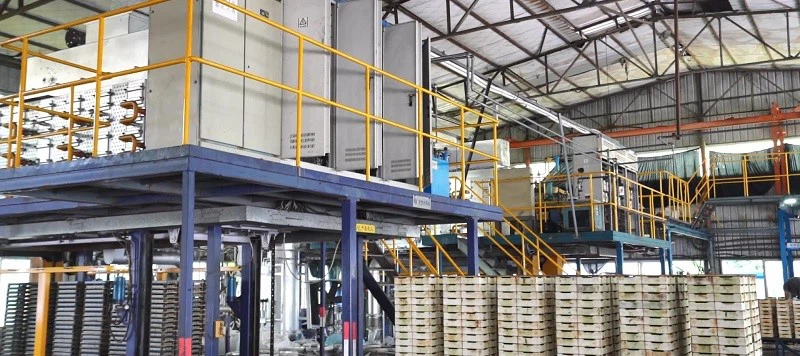

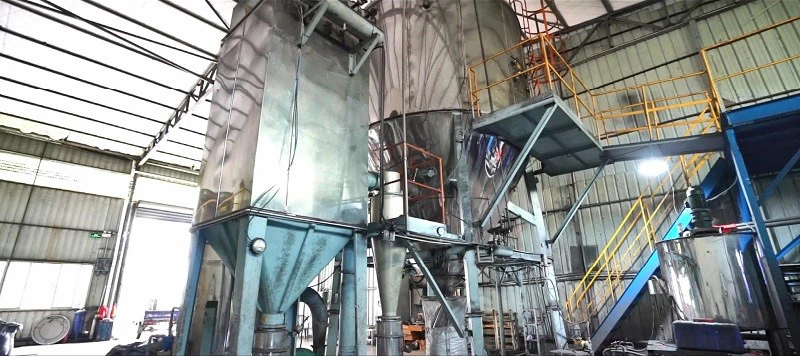

Production Equipment
Carrier Evaluation
Sankexin Model Carrier
Original Model Carrier
Abrasion Resistance Test of Sankexin Carrier [Ricoh 6054]

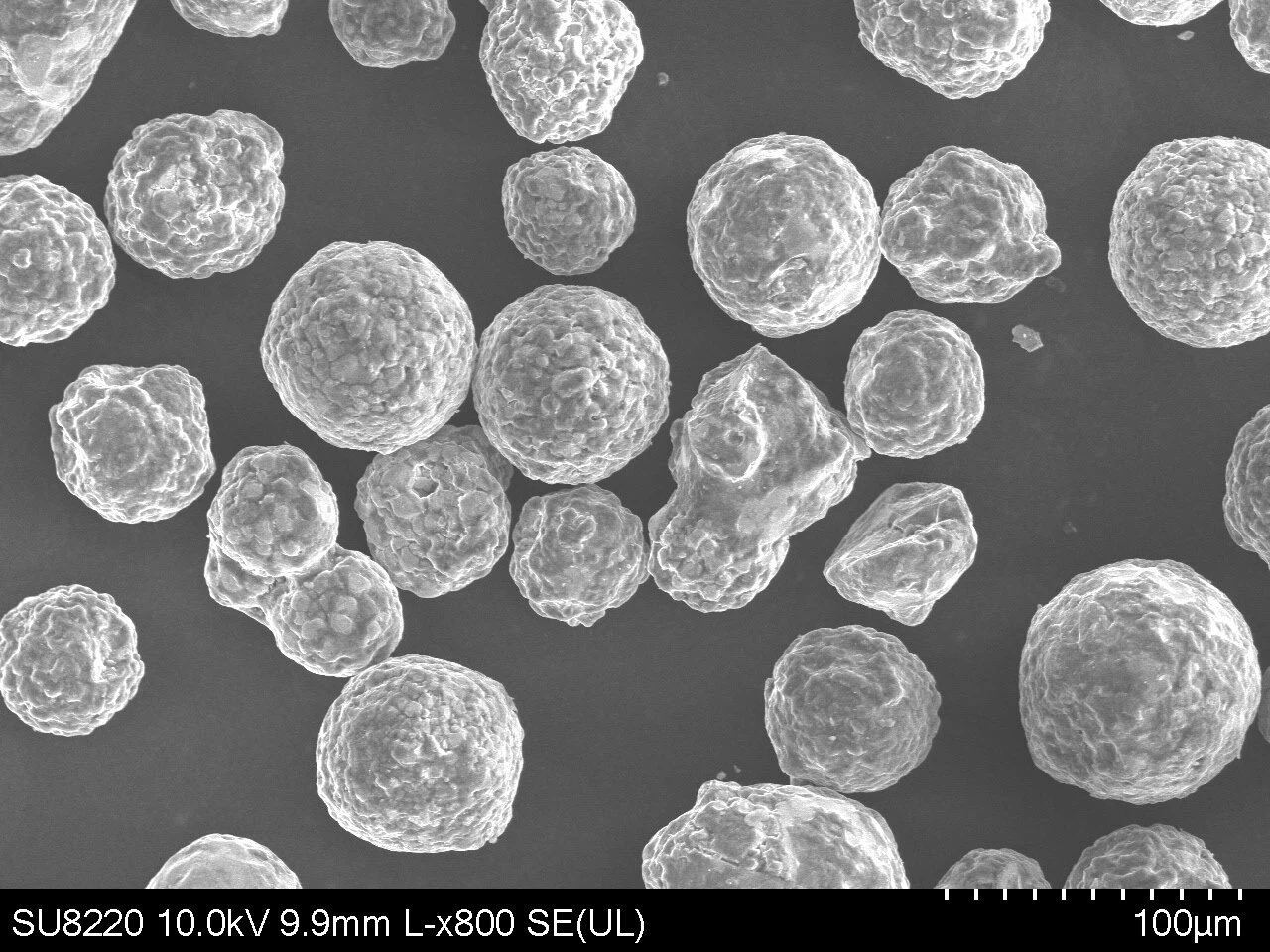

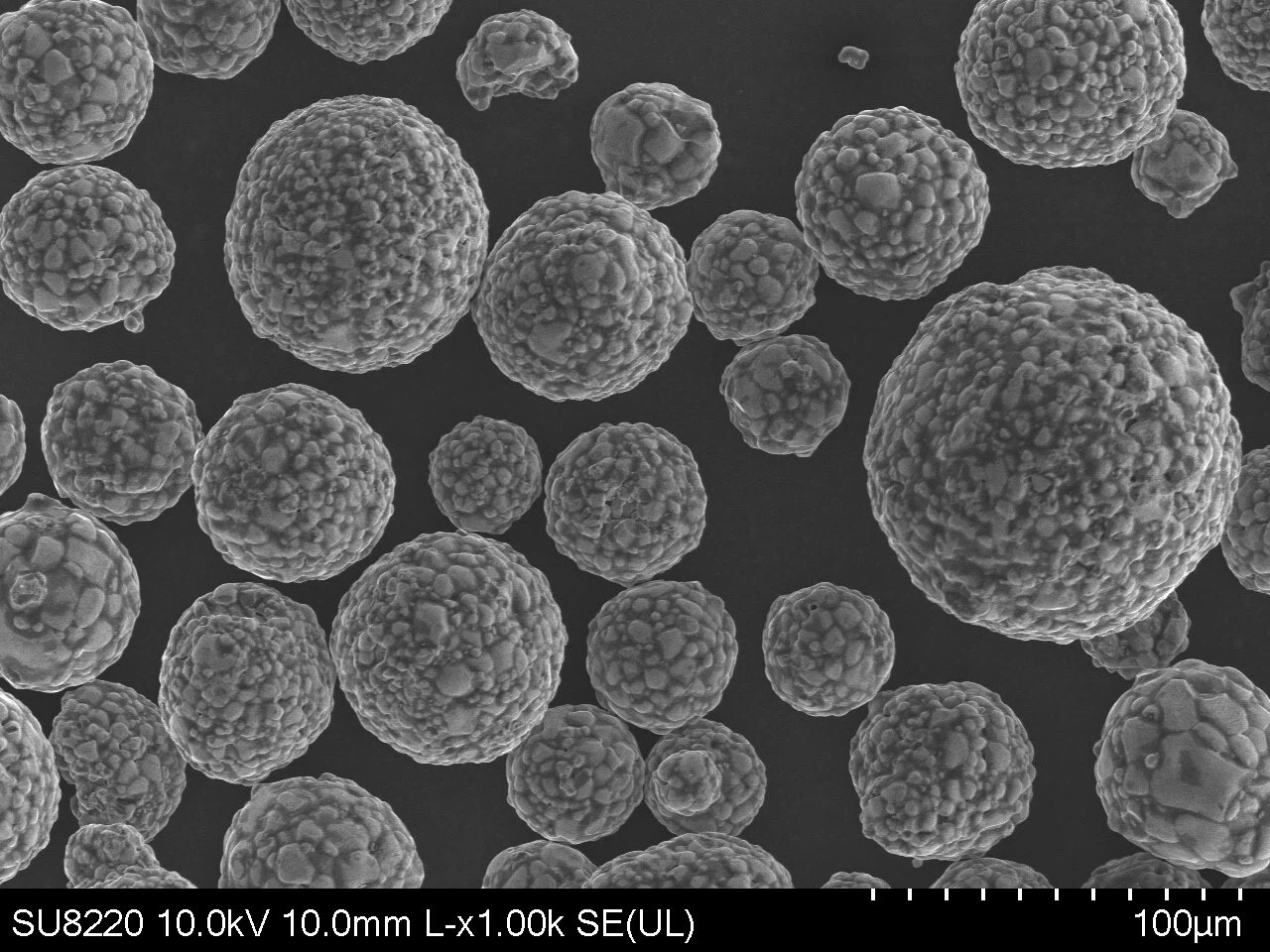

After continuous printing of 120,000 pages, the core-shell structure Fe3O4@Silicone Resin Carrier Surface SEM Image.
● The core-shell structure carrier's printing application test shows stable output of color print images.
● The resin layer of the core-shell structure carrier is not easily detached, and after printing 120,000 pages, the coating remains intact on the core surface.
Sankexin Carrier
|
Physical and Chemical Properties |
Range |
|
Average Particle Size D50( μm) |
58.9μm |
|
Flowability(s) |
27s |
|
Apparent Density(g/cm3) |
2.3 |
|
Specific Surface Area(㎡/kg) |
107.5 |
|
Carrier Conductivity (σ) |
4.10 |
|
Charge( μC/g) |
46.6 |
Original Carrier
|
Physical and Chemical Properties |
Range |
|
Average Particle Size D50( μm) |
58.5μm |
|
Flowability(s) |
28s |
|
Apparent Density(g/cm3) |
2.2 |
|
Specific Surface Area(㎡/kg) |
106.8 |
|
Carrier Conductivity (σ) |
3.98 |
|
Charge( μC/g) |
49.6 |
Carrier Evaluation

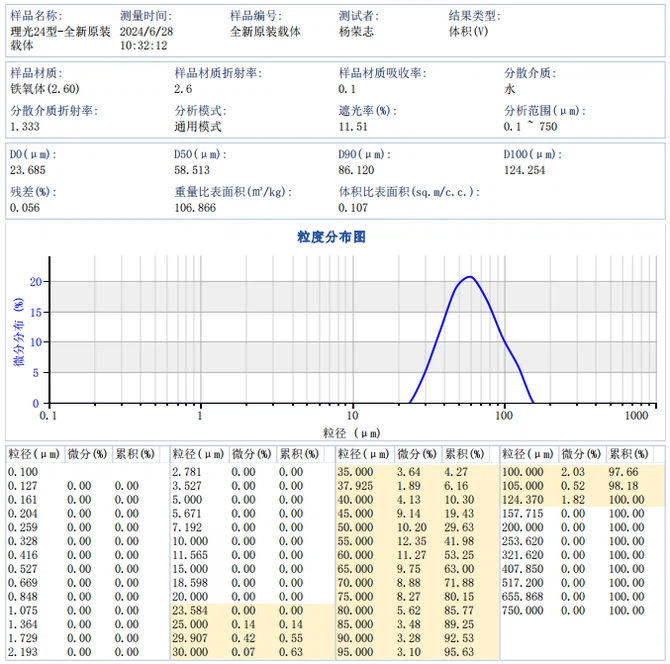

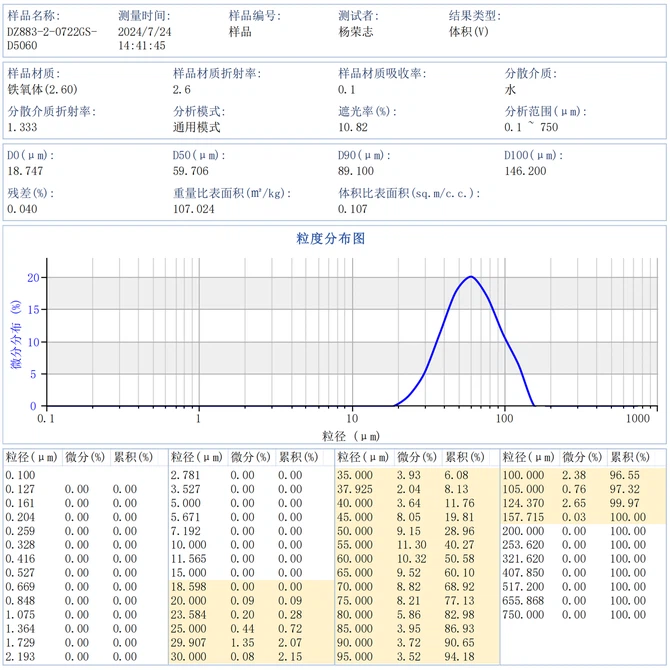

The Particle Size Distribution of the Sankexin Carrier is Close to the Original Carrier.
Development Evaluation
The Color Density and Transfer Efficiency of the Sankexin Carrier are Close to the Original Carrier.
Sankexin Model Carrier
Original Model Carrier
